What is Domain Name System Security Extensions

DNSSEC (Domain Name System Security Extensions) overview

The DNS protocol is open to attack due to an inherent lack of authentication and integrity checking of data that is exchanged between DNS servers or provided to DNS clients. It adds security to DNS responses by providing the ability for DNS servers to validate DNS responses. DNSSEC enables a DNS zone and all records in the zone to be signed cryptographically so that client computers can validate the DNS response. DNS is often subject to various attacks, such as spoofing and cache-tampering. With DNSSEC, resource records are accompanied by digital signatures. These digital signatures are generated when DNSSEC is applied to a DNS zone using a process called zone signing. When a resolver issues a DNS query for resource record in a signed zone, a digital signature is returned with the response so that validation can be performed. If validation is successful, this proves that the data has not been modified or tampered with in any way.

DNS threats

DNS spoofing involves imitation of DNS server responses in order to introduce false information. In a spoofing attack, a malicious user attempts to guess that a DNS client or server has sent a DNS query and is waiting for a DNS response. A successful spoofing attack will insert a fake DNS response into the DNS server’s cache, a process known as cache poisoning. A spoofed DNS server has no way of verifying that DNS data is authentic, and will reply from its cache using the fake information. An attacker can also set the time to live (TTL) on fake DNS data to a very long interval, causing the DNS server cache to remain poisoned for many hours or days. DNSSEC can prevent both of these types of attacks by requiring that DNS responses are validated as authentic. See the following figure.



DNSSEC-related resource records

Digital signatures

Signatures generated with DNSSEC are contained within the DNS zone itself in the new resource records which are called RRSIG (resource record signature) records. When a resolver issues a query for a name, the RRSIG record is returned in the response. A public cryptographic key called a DNSKEY is needed to verify the signature. The DNSKEY is retrieved by a DNS server during the validation process.


Zone signing

Sign in a zone with DNSSEC means that you are individually signing all the records contained in the zone. This makes it possible to add, modify, or delete records in the zone without re-signing the entire zone. It is only necessary to re-sign the updated records.



A DNSKEY resource record stores a public cryptographic key that is used to verify a signature. The DNSKEY record is used by a DNS server during the validation process. DNSKEY records can store public keys for a zone signing key (ZSK) or a key signing key (KSK).



If the DNS server responds that no record was found, this response also needs to be validated as authentic and if there is no resource record, then there is no RRSIG record also. The answer to this problem is the Next Secure (NSEC) record. NSEC records create a chain of links between signed resource records. To create NSEC records, the zone is sorted and NSEC records are created such that each NSEC record has a pointer to the next NSEC record. The last NSEC record points back to the first record. When a query is submitted for a nonexistent record, the DNS server returns the NSEC record prior to where the nonexistent record would have been in the order. This allows for something called authenticated denial of existence. NSEC3 is a replacement or alternative to NSEC that has the additional benefit of preventing “zone walking” which is the process of repeating NSEC queries in order to retrieve all the names in a zone. A zone can be signed with either NSEC or NSEC3, but not both.


Delegation Singer

A DS record is a DNSSEC record type that is used to secure a delegation. DS records are used to build authentication chains to child zones.

Trust anchors
DNSKEY and DS resource records are also called trust anchors or trust points. A trust anchor must be distributed to all nonauthoritative DNS servers that will perform DNSSEC validation of DNS responses for a signed zone. If the DNS server is running on a domain controller, trust anchors are stored in the forest directory partition in Active Directory Domain Services (AD DS) and can be replicated to all domain controllers in the forest. On standalone DNS servers, trust anchors are stored in a file named TrustAnchors.dns.
DNSSEC key management
DNSSEC key management strategy includes planning for key generation, key storage, key expiration, and key replacement. Together, key expiration and replacement in DNSSEC is called key rollover.

How DNSSEC works

DNSSEC uses digital signatures and cryptographic keys to validate that DNS responses are authentic.

DNS zone can be secured with DNSSEC using a process called zone signing. Signing a zone with DNSSEC adds validation support to a zone without changing the basic mechanism of a DNS query and response.

Validation of DNS responses occurs through the use of digital signatures that are included with DNS responses. These digital signatures are contained in new, DNSSEC-related resource records that are generated and added to the zone during zone signing.



When a DNSSEC-aware recursive or forwarding DNS server receives a query from a DNS client for a DNSSEC-signed zone, it will request that the authoritative DNS server also send DNSSEC records and then attempt to validate the DNS response using these records. A recursive or forwarding DNS server recognizes that the zone supports DNSSEC if it has a DNSKEY, also called a trust anchor, for that zone.

DNSSEC validation

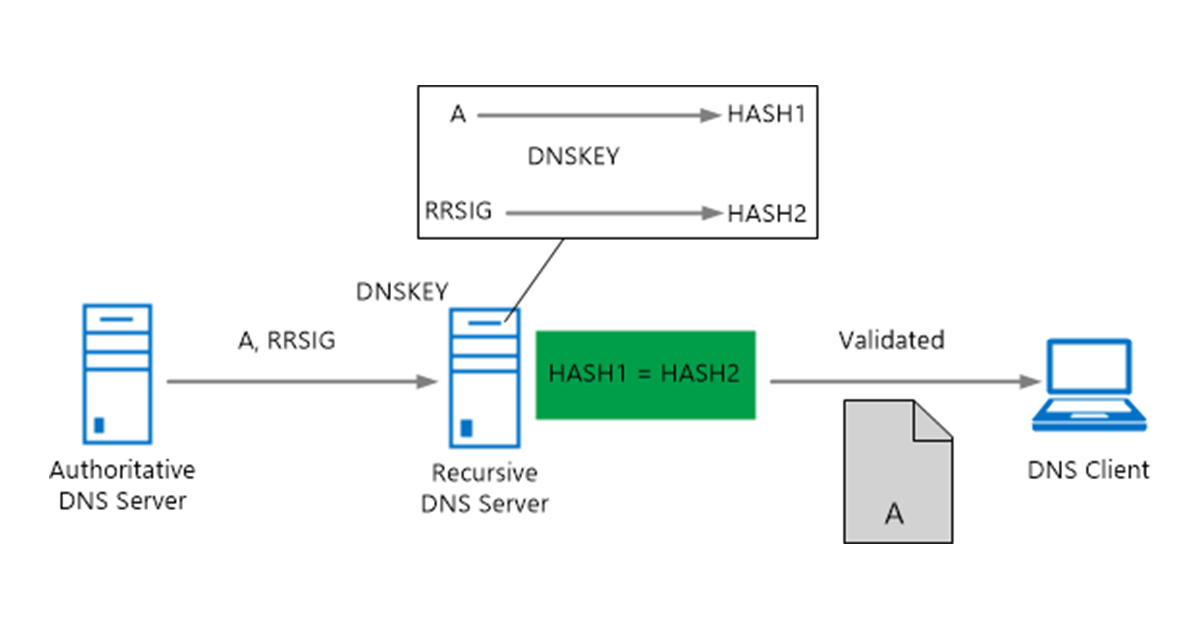

A recursive DNS server uses the DNSKEY resource record to validate responses from the authoritative DNS server by decrypting digital signatures that are contained in DNSSEC-related resource records, and then by computing and comparing hash values. If hash values are the same, it provides a reply to the DNS client with the DNS data that is requested, such as a host (A) resource record. If hash values are not the same, it replies with a SERVFAIL message. In this way, a DNSSEC-capable, resolving DNS server with a valid trust anchor installed protects against DNS spoofing attacks whether or not DNS clients are DNSSEC-aware.
